METAR & TAF KMFD
Current METAR
Observed 10:52Z
KMFD 281052Z 18016G23KT 10SM OVC016 13/11 A2985 RMK AO2 SLP103 T01330111
- Wind
- 180° @ 16G23 kt
- Visibility
- 10 SM
- Temp / Dew
- 13°C / 11°C
- Altimeter
- 29.85 inHg
- Clouds
- OVC
- Density alt
- 1,455 ft
- Ceiling
- 1,600 ft AGL
- Rules
- MVFR
Airport info & contacts
Manager on record, flight service, ARTCC, attendance schedule and pattern altitude — published by the FAA and refreshed every 28 days.
Location
- From city
- 3 NM N
- VFR sectional
- DETROIT
- ARTCC
- ZOB · CLEVELAND
- NOTAM facility
- MFD (NOTAM-D)
Airport manager
- Name
- MARK T DAUGHERTY
- Phone
- 419-522-2191
- Address
- 2000 HARRINGTON MEMORIAL RD, MANSFIELD OH 44903-8051
Flight service · Hours
- FSS CLE
- CLEVELAND1-800-WX-BRIEF
- Attendance
- MON-FRI · 0700-1900
- SAT-SUN · 0800-1800
Frequencies
Tap any row to copy the frequency to your clipboard.
Runways & pattern
Full pagePattern entry · RWY 14
LEFT TRAFFIC| Runway | Heading (°M) | Length | Surface | Traffic |
|---|---|---|---|---|
| 14/32Favored | 131° / 311° | 9,001 ft | ASPH | Standard L |
| 05/23 | 41° / 221° | 6,819 ft | ASPH | Standard L |
Runway end performance
| End | TORA | TODA | ASDA | LDA | VGSI | Approach lights | Obstruction |
|---|---|---|---|---|---|---|---|
| 14 | 9,001' | 9,001' | 9,001' | 9,001' | PAPI 4-box left(3°) | — | 27', road, 1143' from thr, 629' R of cntrln, slope 34 |
| 32 | 9,001' | 9,001' | 9,001' | 9,001' | — | MALSR | 58', trees, 2650' from thr, 250' R of cntrln, slope 42 |
| 05 | 6,819' | 6,819' | 6,819' | 6,819' | PAPI 4-box left(3°) | — | — |
| 23 | 6,819' | 6,819' | 6,819' | 6,819' | PAPI 4-box left(3°) | — | 48', trees, 1550' from thr, 600' R of cntrln, slope 28 |
Declared distances in feet. TORA = takeoff run available, TODA = takeoff distance, ASDA = accelerate-stop, LDA = landing distance.

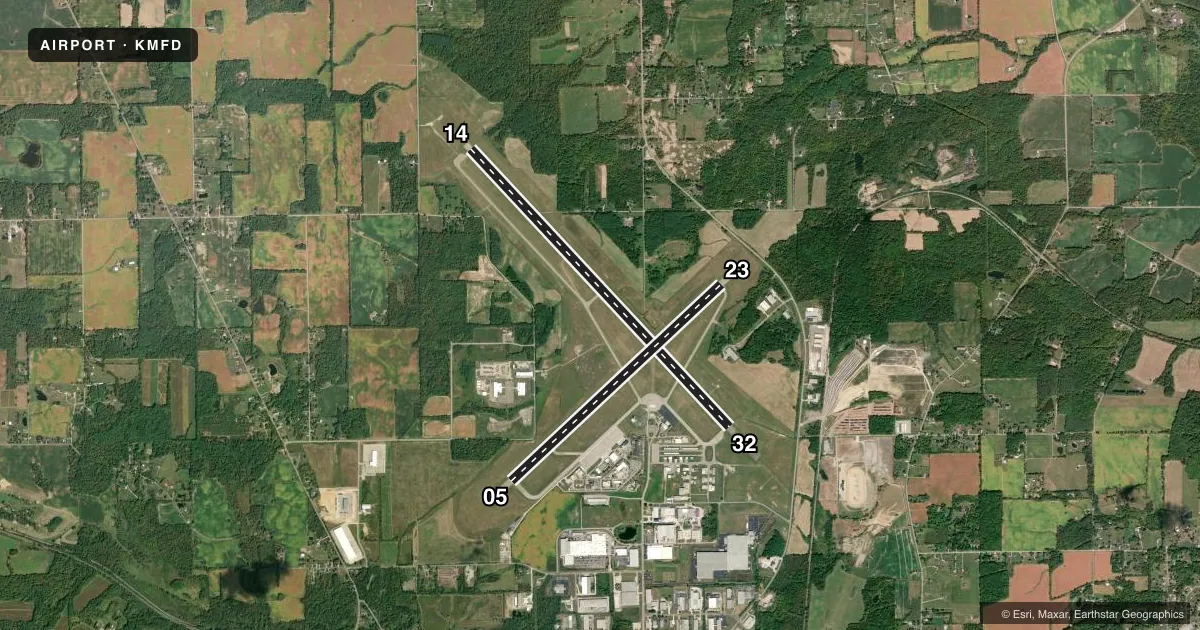

Airport sketch
Runways drawn to scale from FAA survey coordinates, rendered over live satellite imagery. Not for navigation.
Approaches & charts
ILS · 1
Services on the field
Fuel grades, oxygen, maintenance, ramp storage and lighting — as declared to the FAA by the airport operator.
Fuel & services
- Fuel
- 100LLA1+
- Oxygen (bottled)
- High pressure
- Oxygen (bulk)
- Not available
- Airframe repair
- Major
- Power plant repair
- Major
- Other services
- AVNCS,CHTR,INSTR,RNTL,SALES
Ramp & ground
- Transient storage
- Tie-down
- Hangar
- Landing fee
- No fee published
- Customs
- Not available
- Lighting schedule
- SEE RMK
- Beacon schedule
- SS-SR
- Beacon
- White / Green (civil land)(WG)
- Wind indicator
- Lighted
- Segmented circle
- Yes
Fuel & FBOs
Cheapest 100LL and Jet A on the field and nearby. Always confirm with the FBO before taxi.
Airport notes
Surface conditions, obstructions, local procedures, lighting outages and other notes published with each FAA cycle.
General notes
- Aircraft with wingspan greater than 132 feet are restricted to 15 miles per hour on taxiway A.Show FAA
- For clearance delivery contact Cleveland Approach at 216-352-2323. When approach is closed contact Cleveland ARTCC at 440-774-0223 or 440-774-0490.Show FAA
- An 11-foot fence located 95 feet from taxiway A centerline between apron 05 and taxiway F does not have the required clearance from the taxiway centerline.Show FAA
- Aircraft on either end of runway 05/23 and 14/32 are not visible on the other end due to runway grade.Show FAA
- Aircraft larger than a G1 or with a wingspan greater than 80 feet tip to tip are restricted on taxiways G, H, J, L, M, and N and should use the main ramp area.Show FAA
- The lighted and barricaded military ramp is closed to all aircraft.Show FAA
- Deer, birds, and waterfowl are present on and in the vicinity of the airport.Show FAA
Lighting notes
- When the tower is closed, activate the medium intensity approach lighting system with runway alignment indicator lights for runway 32; runway end identifier lights for runways 05 and 23; precision approach path indicators for runways 14, 05, and 23; and high intensity runway lights for runways 05/23 and 14/32 on the common traffic advisory frequency.Show FAA
Runway surface & condition
- 14/32The pavement classification rating value for runway 14/32 is 406/F/B/X/T.Show FAA
- 05/23The pavement classification rating value for runway 05/23 is 374/F/D/X/T.Show FAA
Other notes
- The airport is closed to scheduled aircraft operations greater than 9 passenger seats. Call the airport manager for more information.Show FAA
- Landing fees on all commercial operations are invoiced monthly. For other arrangements contact the airport manager.Show FAA
- 1For FBO after hours contact 419-524-4261 or 419-989-2911.Show FAA
VFR map & nearby airports
VFR sectional. Tap any ICAO chip to open that airport.
Key facts · KMFD
Answer card- ICAO
- KMFD
- Name
- MANSFIELD LAHM RGNL
- Location
- MANSFIELD, OHIO
- Elevation
- 1,297 ft MSL
- Traffic pattern altitude
- 2,297 ft MSL (1,000 AGL)
- Control tower
- Towered · 0600-2300
- Total runways
- 2
- Longest runway
- 14/32 · 9,001 ft
- Published ILS approaches
- 1
- Published frequencies
- 10
- Magnetic variation
- 6°
- Current flight rules
- MVFR
- Current wind
- 180° at 16 kt
- Favored runway now
- RWY 14
Mansfield Lahm Rgnl Airport sits in Mansfield, Ohio at 1,297 ft MSL. It has two asphalt runways. The longest is runway 14/32 at 9,001 ft. Runway 05/23 is 6,819 ft. The airport is towered. Tower hours are 0600 to 2300. It has one ILS approach. It serves runway 32.
Pattern altitude is not published. Use the standard 1,000 ft AGL for light piston traffic unless ATC or the current Chart Supplement says otherwise. Niss Aviation is on the field. It carries 100LL and Jet A. For after-hours FBO contact, the published numbers are 419-524-4261 and 419-989-2911.
A few operational items matter here. Deer, birds and waterfowl are reported on and near the airport. Aircraft on either end of both runways are not visible from the opposite end because of runway grade. Large aircraft also have taxiway limits on parts of the field, so check the current Chart Supplement if you are bringing something bigger than a light piston or a small turboprop. When the tower is closed, published lighting procedures apply on CTAF for runway 32. The airport also has a restriction on scheduled aircraft operations with more than 9 passenger seats. If you need clearance delivery, use Cleveland Approach. If approach is closed, contact Cleveland ARTCC.
